Tempered Glass Processing Machines Industrial Pneumatic Air Glass Lifter

Model Number : CAP500

Certification : CE ISO

MOQ : 1set

Price : By negotiation

Supply Ability : 60 sets per month

Delivery Time : 5 days

Packaging Details : 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;

Function : Industrial Pneumatic Air Glass Lifter

Max Lifting Height : 1000mm

Max lifting weight : 500kg

Sucker number : 4pcs

Air pressure : 0.5-0.8MPa

Turning angle : 0-90degree

Rotating angle : 0-90degree

Safety Guarantee System : 20min working without pressure

Product : Industrial Pneumatic Air Glass Lifter Glass Processing Machines

Drive by : Compressed air

Contact Now

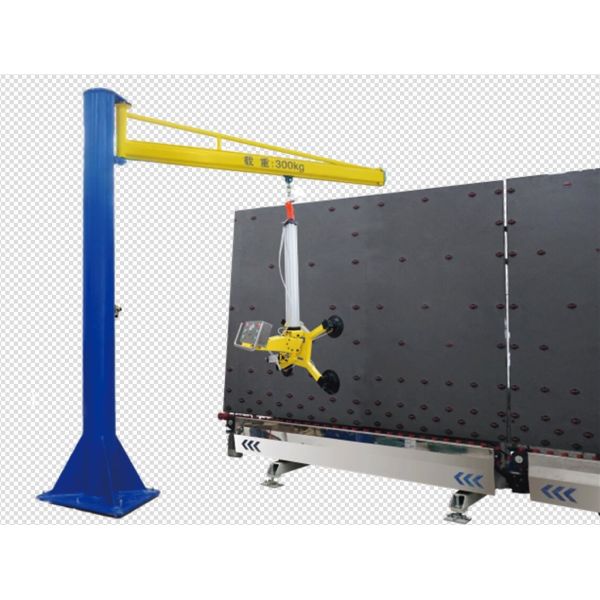

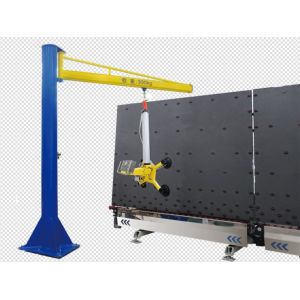

Industrial Pneumatic Air Glass Lifter Glass Processing Machines

Product parameter

The glass lifter with new material and double safety design is equipped with security air tank which could guarantee it still work one cycle when sudden power lost.
The glass lifter with new material and double safety design is equipped with security air tank which could guarantee it still work one cycle when sudden power lost. It features better stability, much safer and more convenient to operate. All the pneumatic components are products of SMC from Japan or air TAC and SCHMALZ from Germany. It could be used in the laminated glass production line, insulating glass production line, mirror glass production line, glass cutting and edging production line and so on. Leader people deeply know that the machine’s durability, safety and easy operation are very important to the glass deep processing enterprises, so we have tested the machine countless times to make sure it is perfect.

Parameters
Model	CAPL-200	CAPL-300	CAPL-500
Rated load	200kg	300kg	500kg
Sucker diameter	250mm	250mm	250mm
Sucker qty	2	4	4
Vertical turning	0°-90°	0°-90°	0°-90°
Horizontal rotation	360°	360°	360°
Weight	60kg	80kg	100kg
Air pressure	>0.5bar	>0.5bar	>0.5bar

Tempered Glass Processing Machines Industrial Pneumatic Air Glass Lifter

Product Details

Tempered Glass Processing Machines Industrial Pneumatic Air Glass Lifter

Products Features

1. Suitable for moving insulating glass /tempered glass/glass curtain wall.
2. Pneumatic glass arm is used to load and unload heavy and hot glass easily. It is easy to carry and very safe and save many labor cost.
3. It features better stability, much safer and more convenient to operate.
4. It could be used in the laminated glass production line, insulating glass production line, mirror glass production line, glass cutting and edging production line and so on.
5. With vacuum pressure charging system, equipment can ensure the whole vacuum system within a relatively constant safe pressure value during transition.

Product Application

The lifter is widely used for lifting, handling and moving of glass, steel and wood sheet and marble.
