CNC Aluminum Window Machine Profile Cutting Saw Machine LJZ2 - CNC - 500X4200

Model Number : LJZ2-CNC-500X4200

Certification : CE ISO

MOQ : 1set

Price : By negotiation

Supply Ability : 30 sets per month

Delivery Time : 20 days

Packaging Details : 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;

Function : Aluminum Window Profile CNC Cutting

Rotating rate : 3100r/min

Blade size : D=500mm

Cutting scale : 135x300mm

Cutting length : 400-4200mm

Cutting angle : 45, -45, 90 degree

Input Power : 4.4Kw

Type : Double Mitre Saw

Contact Now

Main Features

1 .used for Aluminum window door profile high accurate Cutting
2. Imported Linear guide pairs for feeding system , high accurate and stable
3.Right head move by ball-screw pairs .make sure driving high accurate ,positioning accurate ,working stable .
4.cutting angle change Automatic between ±45° and 90°.
5. Imported carbide saw blade for a high quality cutting and long service life. High precision spindle , saw blade rotating stable
6. Imported linear bearing system make sure working stable.
7. Spraying cooling system, make sure carbide saw blade long service life .
8. Pneumatic -hydraulic damp device ensured the saw blade stable feeding and working.
9. Automatic Safety system of shield can ensure the safe operation .

Product parameter

Voltage		380V/50HZ
Power		4.4KW
Working parameters	Saw size	D=500mm d=30mm
	Rotation rate	2800r/min
	Air pressure	0.5-0.8MPa
Cutting scale	HxWxL (mm)	135x300x(400-4200)

Product Display

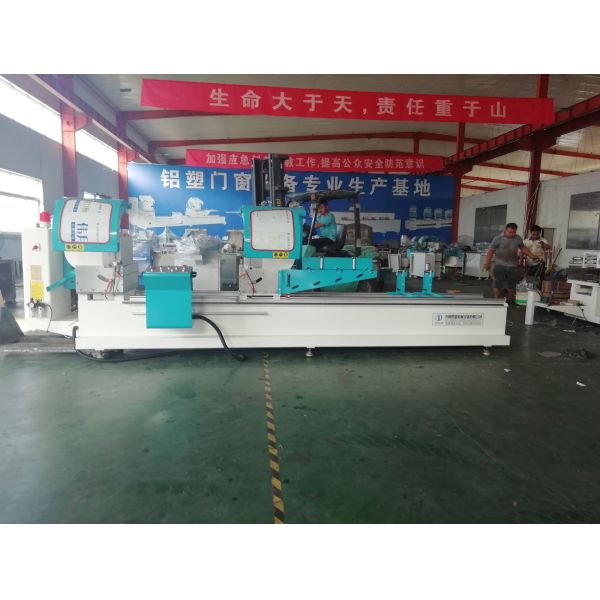

CNC Aluminum Window Machine Profile Cutting Saw Machine LJZ2 - CNC - 500X4200

Product detail

CNC Aluminum Window Machine Profile Cutting Saw Machine LJZ2 - CNC - 500X4200

Products Features

1, Used for cutting the profile of aluminum door and windows,curtain wall and corner connector;

2, Saw blade rotate smoothly due to high accuracy main spindle;

3, The interface adopt the color touching display,which is briefness and intuitionistic;

4, The feeding system adopt the imported linear guide pair,with highaccuracy and stability;

5, 45°and 90°cutting is available;
