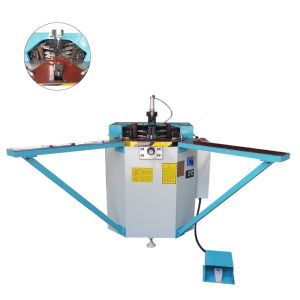

Corner Combining Aluminum Window Machine For Aluminum Window And Door

Model Number : LZJ02

Certification : CE ISO

MOQ : 1set

Price : By negotiation

Supply Ability : 30 sets per month

Delivery Time : 20 days

Packaging Details : 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;

Function : Aluminum Window Corner Crimping

Profile size : 90x120mm

Input Power : 1.5KW

Product : Portable Aluminum Window Processing Machine Single Head Corner Crimping Machine

Contact Now

Corner Combining Machine for Aluminum Window and door of Window machine

Product description

aluminum alloy window machine Specifically for corner combining

1. This machice is designed for 90° corner combining
2.Used for aluminum profiles
3. High working efficiency
4. Operation simple, Reliable performance, advanced technology, Easy maintenance

Power	1.5kw
Voltage	380V/50HZ
Air pressure	0.6-0.8MPa
Profile crimping height	Max.120mm
Profile crimping width	Max. 90mm
Working pressure	15MPa
Crimping accuracy	≤0.15mm
Dimension	1100x1100x1300mm
Weight	300kg

Main Features

1.Aluminum Window and Door Corner Forming Machine is Used for aluminum frame and sash corner crimping, especially for the high-quality profile, such as thermal bridging profile.

2.Hydraulic system driving, ensure a stable working.

3.Synchronous feeding of the level (left and right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently.

4.Convenient operation and less error in processing.

5. Distance of tool knife adjustable, as the screw thread connection, easy working for tools

Product detail

Corner Combining Aluminum Window Machine For Aluminum Window And Door

Product Flow

Corner Combining Aluminum Window Machine For Aluminum Window And Door
